Interleaving

-

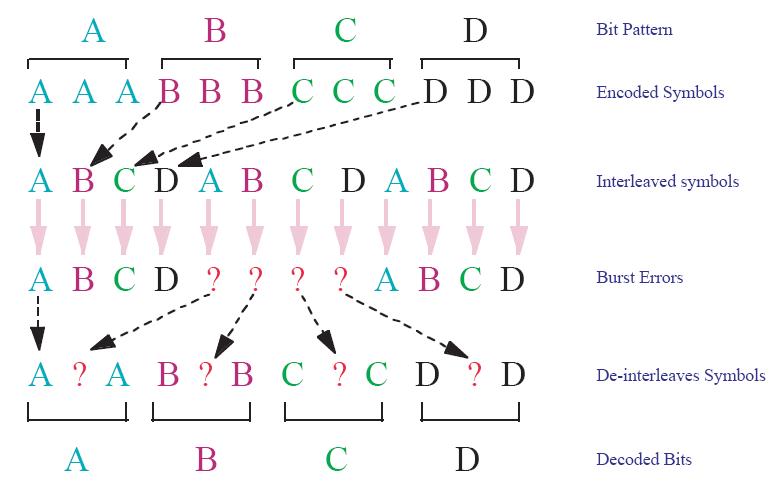

Interleaving is a simple, but powerful, method of reducing the effects of burst errors and recovering bits when burst errors occur. The symbols (output of Forward Error Correction Coder) from each group are interleaved in a pattern that the receiver knows. The interleaver is located at the BTS and in the phone.
